Test
Chamber Series

Updated with a new technology and improved operation.

Specification

The EVO series allow customer to select from a variety of sizes, ranges, and options to meet your specific environmental testing requirements. Our EVO series include features for quality and realible operation;

Energy-efficient refrigeration with exclusive electronic control system
Energy-efficient with high performance compressor
Temperature-only or temperature/humidify models
Available in 8,14, and 32 cubic foot workspaces
Specialized humidity generation and control
Casters, shelf, and cable port

Range -40 to 180 Temp/Huminity & Temp - only

Workspace Volume	8 cu. Ft.	16 cu. Ft.	32 cu. Ft.
Refrigeration System	Single stage scroll type	Single stage scroll type	Single stage scroll type
Humidity Range (Only applicable for Humidity Chamber)	20% to 95%	20% to 95%	20% to 95%
Electrical Supply	415v3 Phase 50/60Hz
Recommended Service	30A	35A	50A
Workspace (W x D x H) mm	500 x 750 x 600	750 x 745 x 850	1000 x 900 x 1000

Range -70 to 180 Temp/Huminity & Temp - only

Workspace Volume	8 cu. Ft.	16 cu. Ft.	32 cu. Ft.
Refrigeration System	Double stage scroll type	Double stage scroll type	Double stage scroll type
Humidity Range (Only applicable for Humidity Chamber)	20% to 95%	20% to 95%	20% to 95%
Electrical Supply	415v3 Phase 50/60Hz
Recommended Service	40A	55A	70A
Workspace (W x D x H) mm	500 x 750 x 600	750 x 745 x 850	1000 x 900 x 1000

CONTROL OPERATION

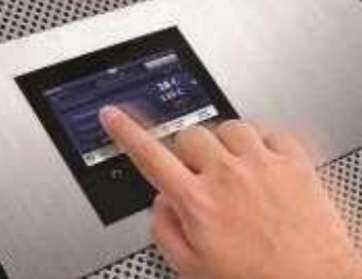

MAX HEAT makes operating an environmental test chamber easier than ever with the new F4T series controller. The new touch screen Interface allow faster access to any screen. Standard USB and Ethernet interfaces make programming and data acquisition much simple. In addition, improved algorithms make control faster and smoother

ENERGY EFFICIENCY OPERATION

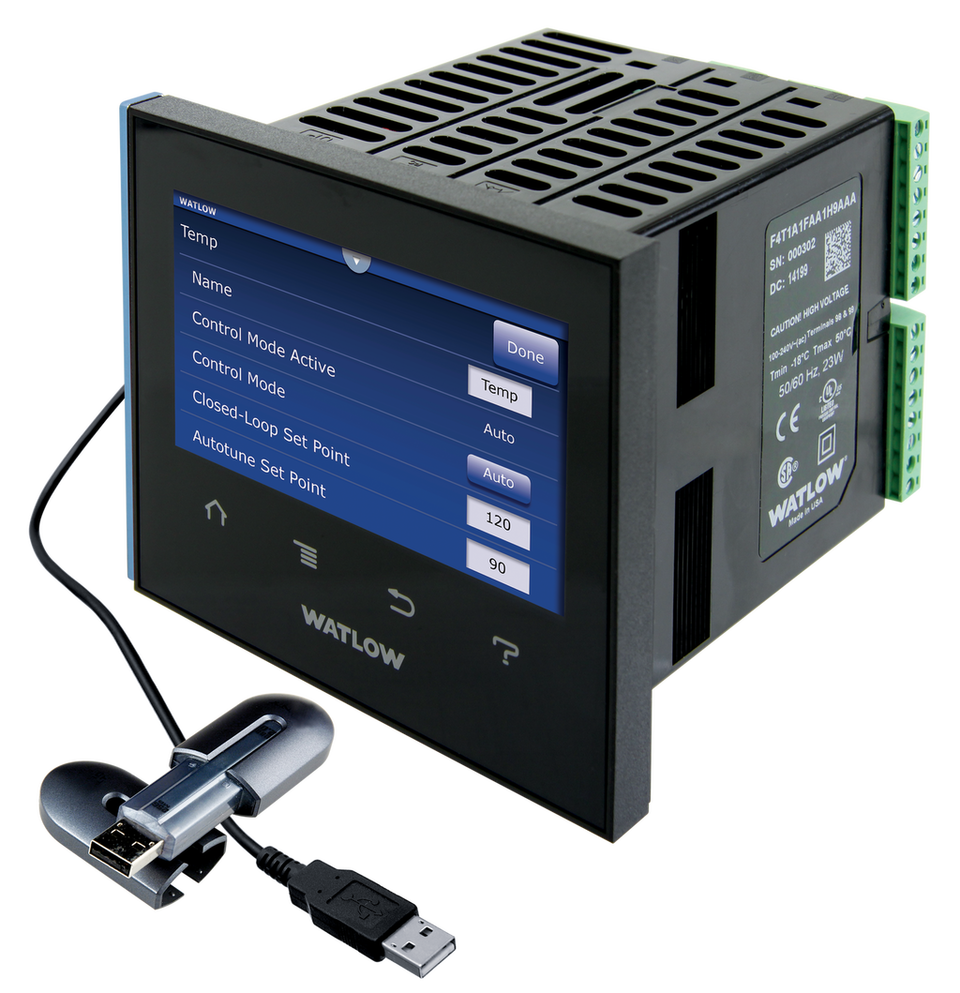

F4T CONTROLLER SPECIFICATION

Shortens learning curve and reduces operator errors
Allows channels, profiles, alarms, inputs and outputs to be personalized with user defined names
Temperature PID, data logger, trend chart, over/under-temperature limit, power switching, math, logic, timers and counters combined into an integrated system
Eliminates the need for separate discrete components
Robust algorithms for temperature, cascade, altitude, humidity and compressor
Improves process control, provides multiple PID sets
Offers 40 ramp and soak profiles with real-time clock and battery backup
Field-hardened electronics and robust algorithms already deployed in hundreds of thousands of installations worldwide
NEMA 4X/IP65
Agency compliance: UL®,
FM, CE, RoHS, W.E.E.E. > 0 to 122°F / -18 to 50°C ambient operating temperature
High performance validated with stringent testing

FEATURES

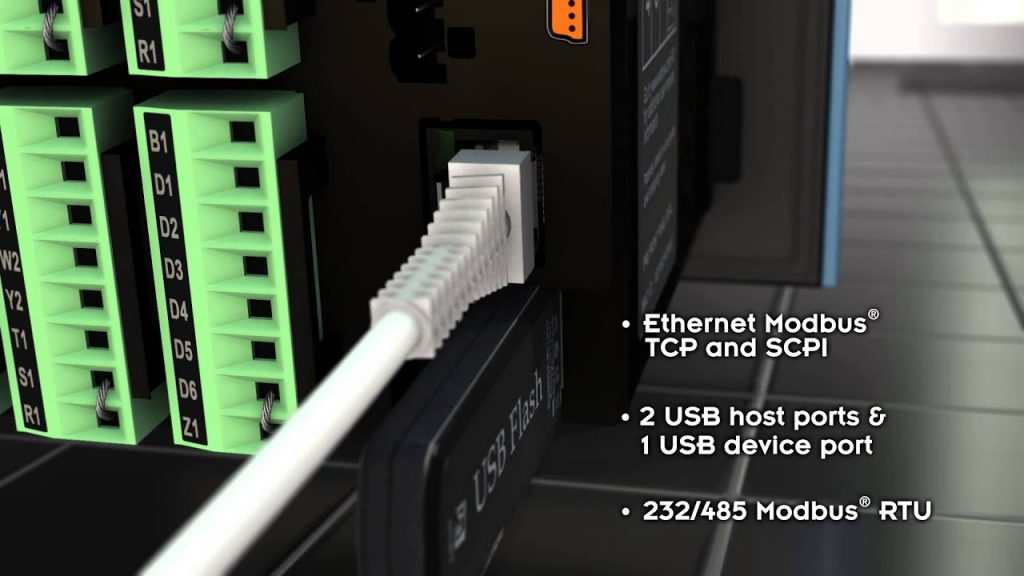

F4T touch-screen programmer with USB and Ethernet port.
High performance, reliable compressors ( Copeland) for low temperature.
Lower sound levels, even for air-cooled models ( Ebm condenser fan)
Refrigeration gauges for easy maintenance
Adjustable stainless steel shelf with heavy-duty support rails.
Auto release water from water tank when stop chamber to ensure heater lifecycle*

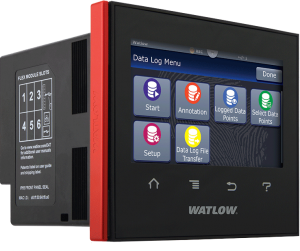

Easy connectivity data and data mobility with file transfer.
Available for proprietary format for encrypted data log option
